Description

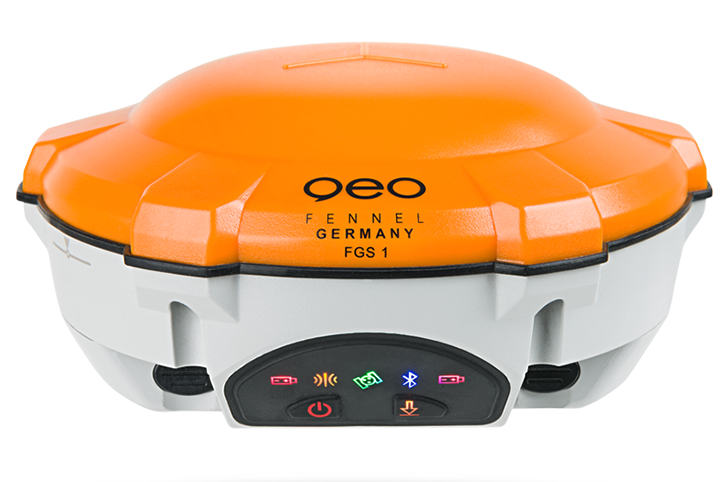

Spesifikasi GPS Geogennel FGS 1 :
Signal Tracking
256 channels with simultaneously tracked satellite signals :
– GPS L1 C/A, L1/L2P, L5
– GLONASS L1/L2
– BeiDou B1, B2, B3
– Galileo Yes, but not activated
– SBAS WAAS, EGNOS, MSAS
Performance Specifications
Cold start : <50s
Warm start : <30s
Initialization time typically : <10s
Initialization reliability typically : >99,9%
Signal reacquisition : <2s
Positioning Specifications
Post processing static :
– horizontal 2,5 mm + 0,5 ppm RMS
– vertical : 5,0 mm + 0,5 ppm RMS
Real time kinematic :
– horizontal : 10 mm + 0,5 ppm RMS
– vertical : 20 mm + 0,5 ppm RMS
E-RTK (<100 km) :
– horizontal : 0,20 m + 1 ppm RMS
– vertical : 0,40 m + 1 ppm RMS
Features
High speed processing
Support for both post-processing and kinematic
Processing ability separate or to be combined with GPS, GLONASS and BeiDou
Supports downloads & use of precise ephemeris
Generation of various reports
User friendly
GPS SYSTEM FGS 1 NETWORK-SET
ART.-NO. 750100
1 GNSS Antenna FGS 1
1 MicroSurvey Fieldgenius Software
1 Fieldcontroller DC5
1 Postprocessing Software
1 USB-Cable for FGS 1
1 RS-232 Cable for FGS 1
1 Measuring Tape 3 m
1 Container
1 Operators‘ manual
