Description

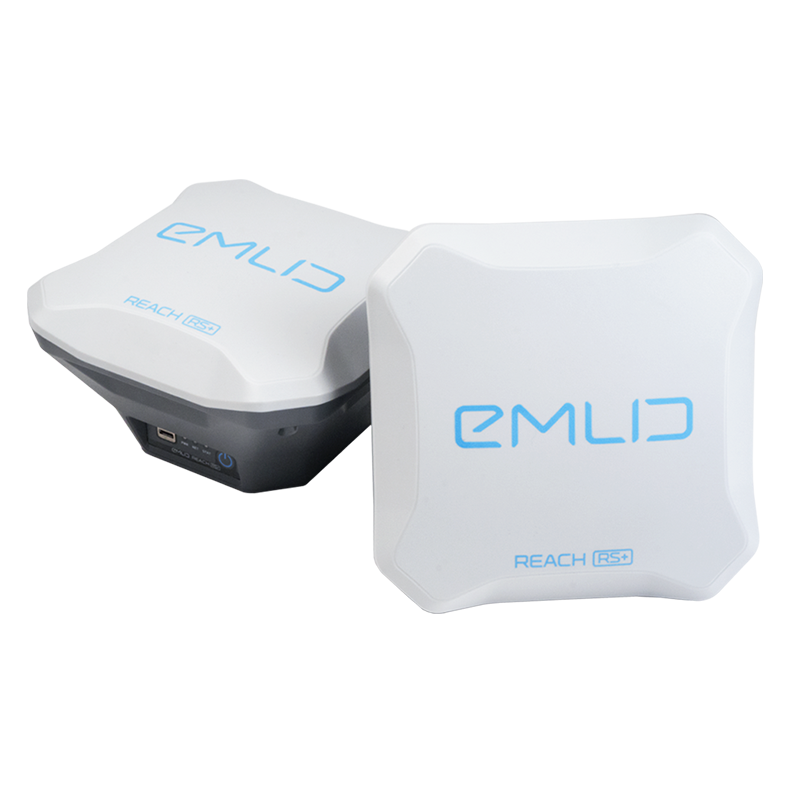

Spesifikasi GPS Geodetic Emlid Reach RS+ adalah sebagai berikut :
Mechanical
Size: 145 x 145 x 85 mm
Weight: 690 g
Operating tº: -20…+65ºC
Ingress protection: IP67 (water and dustproof)
Electrical
Battery life: 30 hours
Charging port: MicroUSB 5V
External power input: 6-40V
Certifications: FCC, CE
Positioning
Static horizontal: 5 mm + 1 ppm
Static vertical: 10 mm + 2 ppm
Kinematic horizontal: 7 mm + 1 ppm
Kinematic vertical: 14 mm + 2 ppm
Connectivity
Radio: LoRa 868/915 MHz
Wi-Fi: 802.11a/b/g/n
Bluetooth: 4.0/2.1 EDR
Interfaces: USB, RS232, PPS, Event
Data
Internal storage: 8 GB
Correction input: RTCM2, RTCM3
Solution output: NMEA, ERB, plain text
Logs: RINEX2.X, RINEX3.X
GNSS
Signals: GPS/QZSS L1, GLONASS G1,
BeiDou B1, Galileo E1, SBAS
Tracking channels: 72
IMU: 9DOF
Update rate: 14 Hz / 5 Hz
