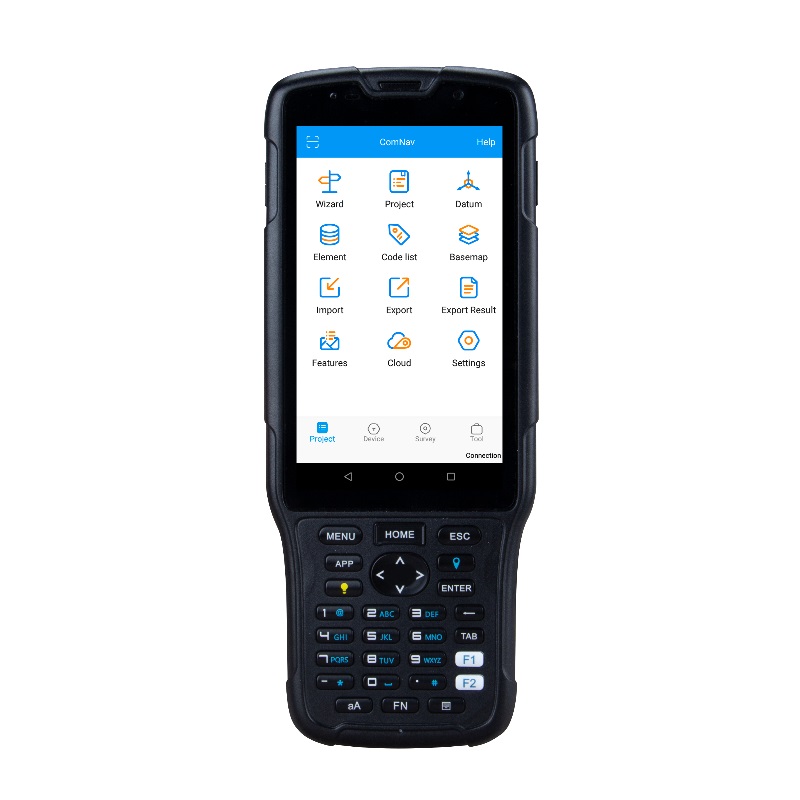

ComNav Technology R550 Data Controller

ComNav Technology R550 Data Controller

SinoGNSS R550 adalah pengontrol data GNSS profesional dengan kemampuan ponsel cerdas, ia memiliki layar sentuh 5 inci yang dapat dibaca sinar matahari dan keypad lampu latar. Dikombinasikan dengan Bluetooth® terintegrasi, Anda dapat dengan mudah menghubungkan atau mengontrol penerima GNSS SinoGNSS, meningkatkan efisiensi dan produktivitas di lapangan.

Features

  • Android 8.1 Operating System
  • MIL-STD 810 G and IP67 Certified
  • 5″ Sunlight Readable Touch Display
  • 13 MP Camera with Autofocus
  • Compact Design with Long Battery Life
  • Dual SIM and Dual Standby
  • Integrated 4G, Bluetooth and Wi-Fi
Categories: , Tags: ,

Description


Android 8.1

Compatible with Android based software Survey Master, the R550 is an ideal choice for data collection.


Dual 4G SIM Card

Built-in 4G cellular modem allow you access real-time maps, web based services and update survey data in real time, meeting your toughest surveying demands.


IP67 Certified

The IP67 dust and water proof rating ensure the R550 work in harsh environments.

Specifications

General

  • Year of introduction 2020
  • Main design elements hardware
  • Total Weight [kg] 0.36
  • Width [m] 0.084
  • Height [m] 0.02
  • Depth [m] 0.207
  • Resolution: horizontal pixels 1280
  • Resolution: vertical pixels 720
  • Display: width [m] 0.0623
  • Display: height [m] 0.1107
  • Touchscreen Y
  • Display Panel 5-point capacitive touch screen

Software

  • Name of GIS package ComNav Technology Survey Master or other Android-based software

GNSS Receiver

  • Compatible external GNSS receivers ComNav Technology receivers and other manufacturers
  • Compatible GNSS correction signals

Computer

  • Processor 8 core 2.0GHz
  • RAM [MB] 4096
  • Hard Disk [MB] 65536
  • Types of Replaceable Memory Support 128G extend TF card
  • Audio: speaker Y
  • Operating System Android 8.1 OS
  • Built-in Camera: megapixels 13
  • Hard Disk
  • Audio: microphone Y

Connectivity

  • User Interfaces touchscreen, keypad(Alphanumeric keyboard + 2 column keys + 1 power key)
  • Wireless Data Transfer Bluetooth, 4G, WiFi
  • Bluetooth Y
  • Ports USB-TypeC
  • WiFi Y

More information

  • Main applications Surveying
  • Distinguishable features Geomagnetic, acceleration, light sensing distance

Operation Characteristics

  • Integrated sensors Compass, IMU, Barcode scanner, NFC
  • Operating temperature: min. [°C] -30
  • Operating temperature: max. [°C] 60
  • Water and dust proof [IP] IP67
  • Humidity resistance 100 no-condensing
  • Shock proof MIL-STD 810 G standard, survive drop from 1.5m onto ground
  • Operation time per battery [hr] 14
  • Battery Field Replaceable N
  • Pole mount available Y

http://www.plazagps.com/gps-geodetic/-comnav-technology-r550-data-controller-842.html

Brochure :
https://v1.cecdn.yun300.cn/fsite_1802020370/SinoGNSS%20R550ccData%20Collector.pdf
