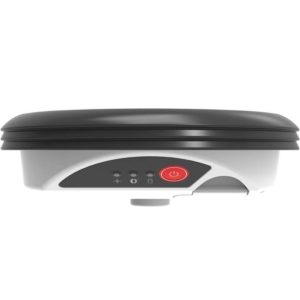

Description
Key Features :
• High Accuracy
• 240-channel 6G ASIC GNSS board
• Z-blade GNSS-centric technology
• SBAS ranging
• Inside-the-rod UHF antenna
• Trimble CenterPoint RTX correction service
• Trimble TSC3 Controller
• Trimble Access field software
• Trimble Business Center office software
Spesification :
• 240 GNSS channels
– GPS L1C/A, L1P(Y), L2P(Y), L2C
– GLONASS L1C/A, L2C/A, L3
– BeiDou B1 (phase 2), B2
– Galileo E1, E5b
– QZSS L1C/A, L2C, L1 SAIF
– SBAS L1C/A
– L-band
• Support for Trimble RTX™real-time correction services
• Patented Z-Blade technology for optimal GNSS performance
– Full utilization of signals from all 6 GNSS systems (GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS)
– Enhanced GNSS-centric algorithm: fully-independent GNSS signal tracking and optimal data processing, including GPS-only, GLONASS- only or BeiDou-only solution (autonomous to full RTK)
– Fast Search engine for quick acquisition and re-acquisition of GNSS signals
• Patented SBAS ranging for using SBAS code & carrier observations and orbits in RTK processing
• Patented Strobe™Correlator for reduced GNSS multi-path
• Up to 10 Hz real-time raw data (code & carrier andposition output)
• Supported data formats: ATOM, CMR, CMR+, RT CM 2.1, 2.3, 3.0, 3.1 and 3.2 (including MSM), CMRx and sCMRx (rover only)
• NMEA 0183 messages output
REAL TIME ACCURACY1, 2
SBAS (WAAS/EGNOS/MSAS/GAGAN)
• Horizontal: < 50 cm
• Vertical: < 85 cm
Real-Time DGPS position
• Horizontal: 25 cm + 1 ppm
• Vertical: 50 cm + 1 ppm
Real-Time Kinematic position (RTK)
• Horizontal: 8 mm + 1 ppm
• Vertical: 15 mm + 1 ppm
GIS accuracy modes
• 30/30
– Horizontal: 30 cm
– Vertical: 30 cm
• 7/2 (rmware option needed)
– Horizontal: 7 cm
– Vertical: 2 cm
Real-Time performance
• Instant-RTK®Initialization
– Typically 2 sec for baselines < 20 km
– Up to 99.9% reliability
• RTK initialization range: over 40 km
POST PROCESSING ACCURACY (RMS)
Static & Fast static
• Horizontal: 3 mm + 0.5 ppm
• Vertical: 5 mm + 0.5 ppm
High-Precision Static3
• Horizontal: 3 mm + 0.1 ppm
• Vertical: 3.5 mm + 0.4 ppm
Post-Processed Kinematic (PPK)
• Horizontal: 8 mm + 1 ppm
• Vertical: 15 mm + 1 ppm
DATA LOGGING CHARACTERISTICS
Recording interval
• 0.1 – 999 seconds
PHYSICAL CHARACTERISTICS
Size
• 21 x 21 x 7 cm (8.3 x 8.3 x 2.3 in)
Weight
• 930 g (2.08 lb)
User interface
• Five LEDs for Power, Tracking, Bluetooth®, Recording,Radio operations
I/O interface
• RS232 serial link
• USB 2.0/UART and USB OTG
• Bluetooth 2.1 + EDR. Long range: Class 1 (19 dbm)
Memory
• 256 MB internal memory NAND Flash
• Over a month of 15 sec. raw GNSS data from
Operation
• RTK rover & base
• RTK network rover: VRS, FKP, MAC
• NTRIP, Direct IP
• Post-processing
• Trimble RTX (satellite and cellular/IP)
Environmental characteristics
• Humidity: 100% condensing
• IP67 waterproof, sealed against sand and dust
• Shocks: MIL STD 810 (g 516.5-10) (01/2000)
• Vibration : MIL-STD-810F (g 514.5C-17) (01/2000)
