Description

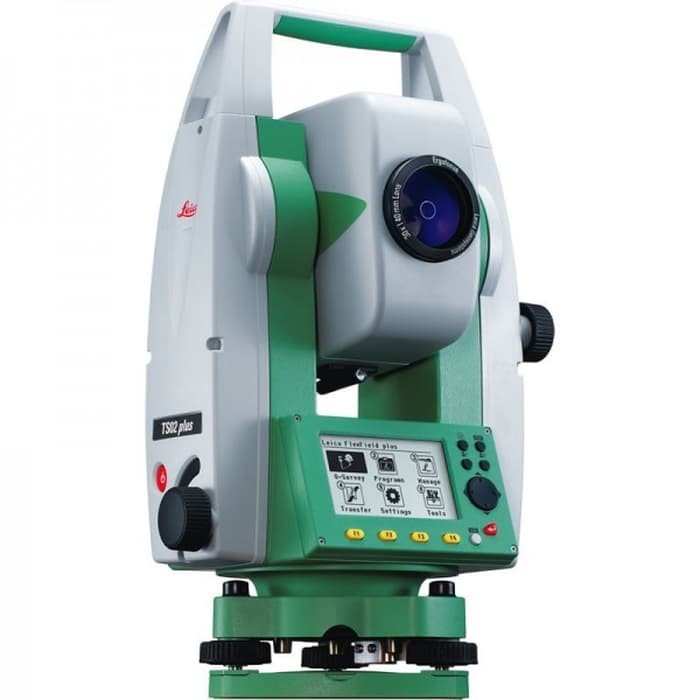

Total Station Leica Flexline TS02 Plus menggunakan baterai Lithium-Ion yang memberikan umur panjang, waktu pengisian dan pengoperasian yang cepat dari 20 jam. Flexline dilindungi spesifikasi IP55 dan dilindungi air dan debu.
Total Station Leica Flexline TS02 Plus mudah diatur menggunakan laser yang merosot dengan proses yang dipandu dan urutan start-up. Tata letak tombol yang ergonomis dan layar besar menyediakan input data bebas kesalahan dan membuat operasi sederhana.
Setiap paket termasuk
TS02 plus Total Station & Keyboard
GDF111-1 Tribrach
Baterai GEB211 (x2)
Charger GKL211
GEV189 Data-Transfer-Cable
GMP111-0 1 Set Miniprism
Panduan pengguna
Carry Case
Sertifikat Kalibrasi – 1 Tahun
1yr Garansi dan Paket Layanan Pelanggan Dasar
Leica FlexLine TS02 Total Station Details
Angle Measurement
Accuracy optional 3″, 5″, 7″
Method Absolute, Continuous, Diametrical
Resolution Display 0.1″
Compensation Quadruple Axis
Accuracy – Compensator Setting 1″, 1.5″, 2″
With Reflector – Distance Measurement with
Round Prism – Range 3500metres
Reflective Tape – Range 250metres
With Reflector no – Distance Measurement
Range
FlexPoint
Power PinPoint
Ultra PinPoint
Optional 30 m
Optional > 400 m3)
Optional > 1000 m3)
Accuracy / Measurement time 2 mm+2 ppm2 / typ. 3 s
Dot size – Laser At 30metres approximatley 7 mm x 10 mm
Communication & Data storage
Extended Internal memory Max – 24000 fixpoints, Max – 13500 measurements
USB memory stick Optional 1 Gb
Interfaces Optional USB A and mini B, Bluetooth® Wireless
Guide Light – Electronic
Range – Working
Accuracy – Positioning Optional 5metres – 150metres
Optional 5centimetres at 100metres
General
Telescope
Magnification 30x
Power – Resolving 3″
Range – Focusing 1.7metres – infinity
Reticle type Illuminated with 5 levels of brightness
Keyboard and Display
Graphical Display 160 x 280 pixels, graphical and illuminated with 5 levels of brightness
Keyboard Standard keyboard
Optional Alpha numerical, Second keyboard
Laserplummet
Type Laser point with 5 levels of brightness
Accuracy – Centering 1.5mm @ 1.5metres instrument height
Battery
Type of Lithium-Ion
Operating time Approximatley 20 hours
Weight
Total Station 5.1kilograms
Environmental
Operational Temperature -20°C to +50°C
Optional Arctic Version -35°C to 50°C
Dust & splash proof rating IP55
Humidity 95%
