Description

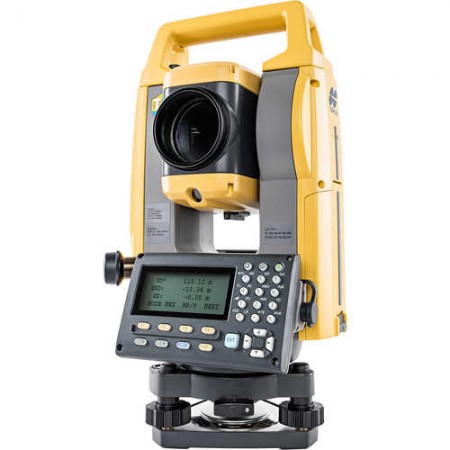

FITUR Total Station Topcon GM 102
- 1.000 m rentang non-prisma
- 6.000 m rentang prisma
- Akurasi sudut “terbaik di kelasnya” 1.
- Hingga 32 GB penyimpanan
- IP66 tahan air / debu-bukti
- Kompatibel dengan thumb drive standar industri
- Daya tahan baterai 21 jam dalam mode normal
Spesifikasi Total Station Topcon GM 102
Angle Measurement
Min. Resolution/Accuracy
GM-101 : 1”/2″
IACS : Standard on 1” and 2” models
Compensation : Dual-axis compensator
Distance Measurement
Prism EDM Range : 6,000 m
Prism EDM Accuracy : 1,5 mm + 2 ppm
Non-Prism Range : 1,000 m
Non-Prism Accuracy : 2 mm + 2 ppm | (0,3 – 200 m)
Measuring Time Fine: 0,9 sec | Rapid: 0,6 sec | Tracking: 0,4 sec
Communications
LongLinkTM is not supported
Bluetooth® Class 1,5/10 m
USB 2.0 Slot (Host)
RS-232C Serial
General
Display Single Backlit LCD | (Dual display optional)
Battery Operation : Up to 28 hours
Dust/Water Rating : IP66
Wireless Connection : Bluetooth® Class 1.5
Operating Temp: -20oC to 60oC | Special Arctic version available : (-35 to 50oC) | Laser : plummet standart. | Optional optical plummet available in some global location
Standard Package Components :
Main unit • Battery (BDC46C)
Battery charger (CDC68A)
Power Cable • Lens cap • Lens hood
Tool pouch • Precision Screwdriver
Lens brush • Hexagonal wrench ×2
Cleaning cloth • Quick Manual
Laser caution sign-board
Carrying case • Carrying strap
Available Accessories:
2 x Aluminum Tripod
1 x Prisma Polygon
1 x Range Pole
1 x Single Prism
1 x Cable Data
1 x Software Data
