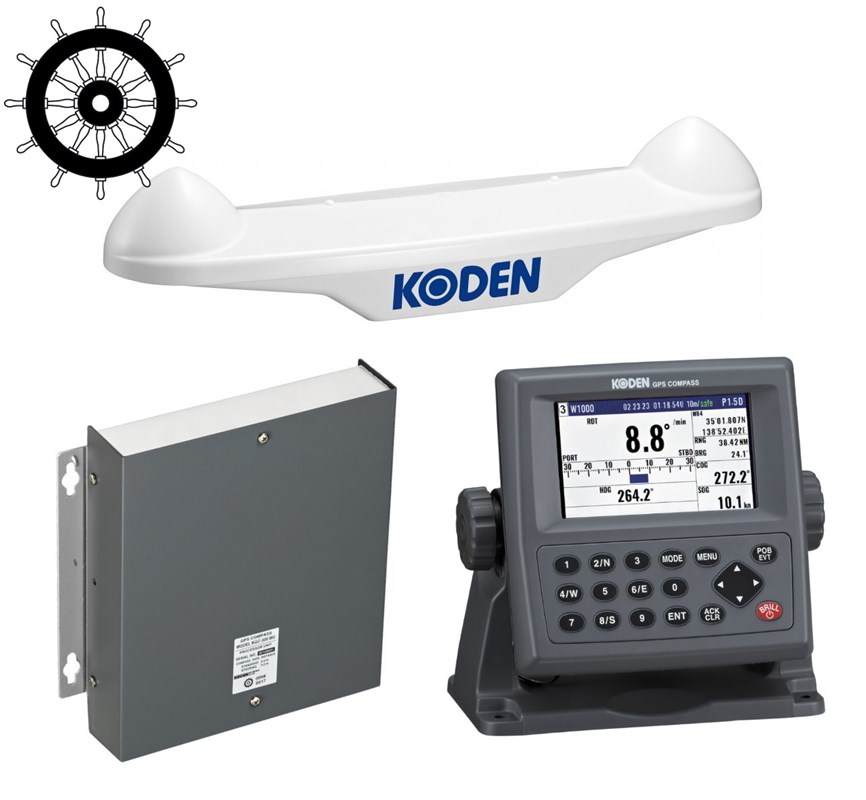

KODEN KGC-300 GPS Compass

Designed for safety

KGC-300 is a IMO approved GPS and can be used as a main compass on vessels up to 500 GT and as a backup compass for boats over 500 GT. User-friendly 4.3 “color display with several different views of course, speed, position etc. KGC-300 has up to 5 NMEA outputs with optional telegram and baud rate. With a start time of about 50 seconds (cold start) the compass sends out course and position to connected equipment very fast.

The KGC-300 also has the ability to send out the Furuno AD-10 signal, and can be used to stabilize older Furuno equipment that does not have a NMEA input. In addition, it can send out PFEC (Furuno’s own pitch and roll telegram) which enables the compass to stabilize Furuno sonar.

Categories: , Tags: , , ,

Description

Features

  • IMO certified GPS Compass (THD) and GPS Navigator

  • Highly accurate heading, position, and speed data

Get the information you need quickly and accurately for marine activities.

  • Stable and fast tracking capability

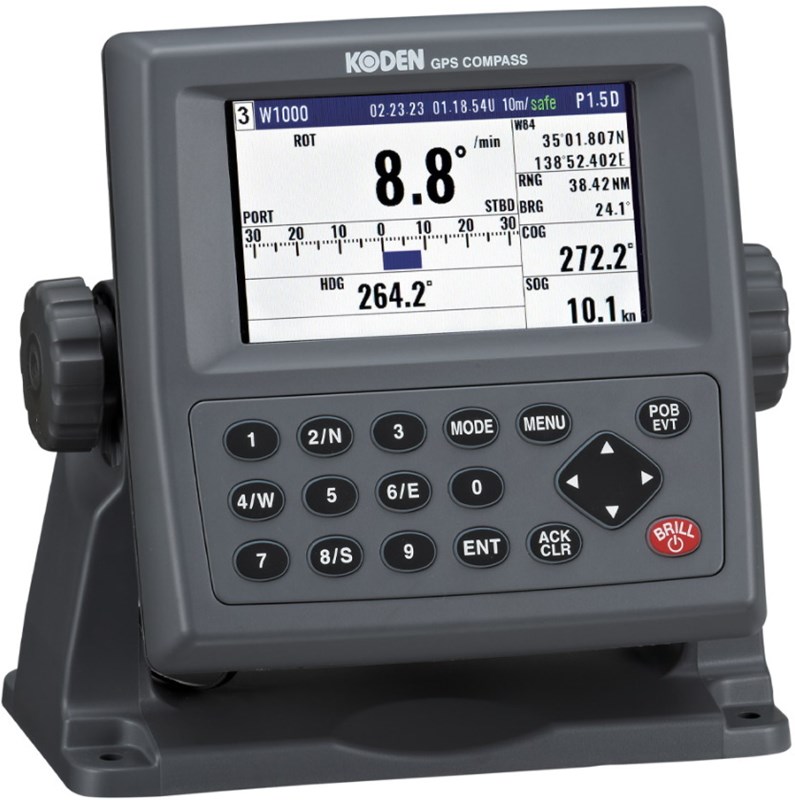

  • Esthetically pleasing 4.3-inch high resolution Color LCD

4.3-inch Color LCD Display provides high visibility even under bright sunlight.

  • 5 heading data output ports

  • SBAS (WAAS / EGNOS) enabled

Display
Display

KGC-300

PDF Brochure

Screen Image

Heading graph display1
Heading graph display1
ROT display
ROT display
Nav data display2
Nav data display2

Main Specifications

Receiving frequency 1575.42 MHz ± 1MHz
Receiving channel Parallel 16-channel
Sensitivity Better than –130 dBm
Accuracy Position GPS: 10m (2drms, SA: OFF, PDOP: 3 or less)
DGPS: 3m (2drms, SA: OFF, PDOP: 3 or less)
Heading 0.5° rms
Velocity 1 m / sec (rms, SA: OFF, PDOP: 3 or less)
